Farm Photo: Moldboard Plowing with Horse

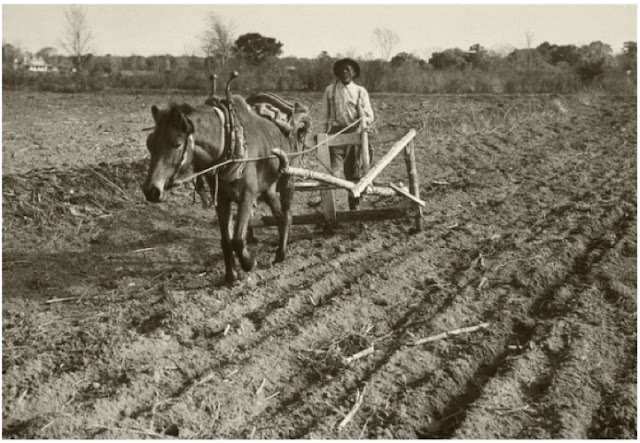

A farmer uses a primitive moldboard plow
to till his farmland in U.S.

From wikipedia: Mouldboard plough...

A major advance in plough design was the mouldboard plough (American spelling: moldboard plow), which aided the cutting blade. The coulter, knife or skeith cuts vertically into the ground just ahead of the share (or frog) a wedge- shaped surface to the front and bottom of the mouldboard with the landside of the frame supporting the below-ground components. The upper parts of the frame carries (from the front) the coupling for the motive power (horses), the coulter and the landside frame. Depending on the size of the implement, and the number of furrows it is designed to plough at one time, there is a wheel or wheels positioned to support the frame. In the case of a single-furrow plough there is only one wheel at the front and handles at the rear for the ploughman to steer and manoeuvre it.

When dragged through a field the coulter cuts down into the soil and the share cuts horizontally from the previous furrow to the vertical cut. This releases a rectangular strip of sod that is then lifted by the share and carried by the mouldboard up and over, so that the strip of sod (slice of the topsoil) that is being cut lifts and rolls over as the plough moves forward, dropping back to the ground upside down into the furrow and onto the turned soil from the previous run down the field. Each gap in the ground where the soil has been lifted and moved across (usually to the right) is called a furrow. The sod that has been lifted from it rests at about a 45 degree angle in the next-door furrow and lies up the back of the sod from the previous run.

In this way, a series of ploughing runs down a field leaves a row of sods that lie partly in the furrows and partly on the ground lifted earlier. Visually, across the rows, there is the land (unploughed part) on the left, a furrow (half the width of the removed strip of soil) and the removed strip almost upside-down lying on about half of the previous strip of inverted soil, and so on across the field. Each layer of soil and the gutter it came from forms the classic furrow.

The mouldboard plough greatly reduced the amount of time needed to prepare a field, and as a consequence, allowed a farmer to work a larger area of land. In addition, the resulting pattern of low (under the mouldboard) and high (beside it) ridges in the soil forms water channels, allowing the soil to drain. In areas where snow buildup is an issue, this allows the soil to be planted earlier as the snow runoff is drained away more quickly.

Parts of a mouldboard plough: There are 5 major parts of a moldboard plough

1. Mouldboard
2. Share
3. Landside
4. Frog
5. Tailpiece
A runner extending from behind the share to the rear of the plough controls the direction of the plough, because it is held against the bottom land-side corner of the new furrow being formed. The holding force is the weight of the sod, as it is raised and rotated, on the curved surface of the mouldboard. Because of this runner, the moldboard plough is harder to turn around than the scratch plough, and its introduction brought about a change in the shape of fields—from mostly square fields into longer rectangular “strips” (hence the introduction of the furlong).
